Detailed Description

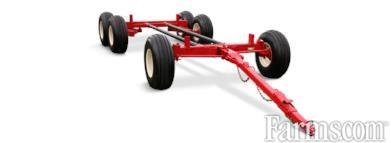

Capacity 24,000 lbs. Spindles Front: 2-3/4'' Dia. C1045 Cold Rolled; Rear: 2-1/4'' Dia. C1045 Cold Rolled Hubs 6 Bolt 6,000 lbs. Front Axle 6 x 3 x .250 Wall Rear Axle 6 x 3 x .250 Wall Tongue Bracket Mounting 1-1/2'' Bolt Bearing Mtd. Tongue Bolt 1-1/8'' Dia. Bolster Stakes Adjustable 38.5'' - 40.5'' - 42.5'' Steering Automotive Type Tie Rod Ends Greasable Automotive Style Ball Joints Wheel Base Adjustable Height From Ground To Top Of Bunk 23'' on 11L x 15 Tires Approx Weight 970 lbs. (less rims and tires) Bearings - Bore Size (Inner/Outer) Taper Roller 1.80/1.38 Comments 6 Wheel Model 12 ton tandem wagon gear Quick hitch tongue Standard reach length 11' Wheel Base adjustable 8' 8"" - 11' 2"" Hubs - 6 Bolt 6,000 LBS. Rim & Tire Sizes Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire) 11L x 15 8 Ply 15 x 8 x 6 76"" 2,540 225/75 R15 D Range 15 x 6 x 6 76"" 2,540 12.5L x 15 12 Ply 15 x 10 x 6 77"" 3,640 12.5L x 16 14 Ply 16 x 10 x 6 75"" 4,180 245 R16 Used Truck / New Tubes* 16 x 8 x 6 76"" 3,500 11L x 15 D Range / Hwy Ser. 15 x 8 x 6 HD 76"" 3,120 11L x 15 F Range / Hwy Ser. 15 x 8 x 6 HD 76"" 3,690 Read more ...
Additional Description
Ag Trailers - Other; Agricultural Equipment
