Detailed Description

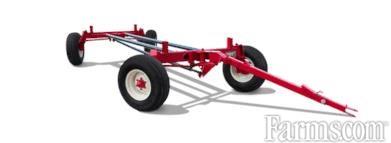

Model 185F (6 Ton) Manufacturer Horst Capacity 12,000 lbs. Spindles 2'' Diameter, C1045 Hot Rolled Hubs 6 Bolt 6,000 lb Bearings Taper Roller (1.80 / 1.38) Front Axle 6 x 3 x .250 Wall Rear Axle 6 x 3 x .250 Wall Tongue Bracket Mounting 1-1/2'' Bolt Bearing Mtd. Tongue Bolt 1-1/8'' Diameter Tongue Latch Retractable Automatic Relock Reach Poles 3'' O.D. x .188 Wall - Round Tube Bolster Stakes Adjustable 38.5'' - 40.5'' - 42.5'' Steering Automotive Type Tie Rod Ends Greasable Automotive Style Ball Joints Wheel Base Fixed 11'2'' Height From Ground To Top Of Bunk 24'' (on 11L x 15 Tires) Approx Weight 985 lbs. (less rims and tires) Comments 4 Wheel Model Four Wheel Steer 6 ton wagon gear Quick hitch tongue Standard reach length 11' Wheel Base Fixed 11' 2"" Hubs - 6 Bolt 6,000 LBS. Rim & Tire Sizes Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire) 11L x 15 8 Ply 15 x 8 x 6 72"" 2,540 225/75 R15 D Range 15 x 6 x 6 72"" 2,540 12.5L x 15 12 Ply 15 x 10 x 6 73"" 3,640 245 R16 Used Truck / New Tubes* 16 x 8 x 6 72"" 3,500 11L x 15 F Range / Hwy Ser. 15 x 8 x 6 HD 72"" 3,690 Read more ...
Additional Description
Ag Trailers - Other; Agricultural Equipment
